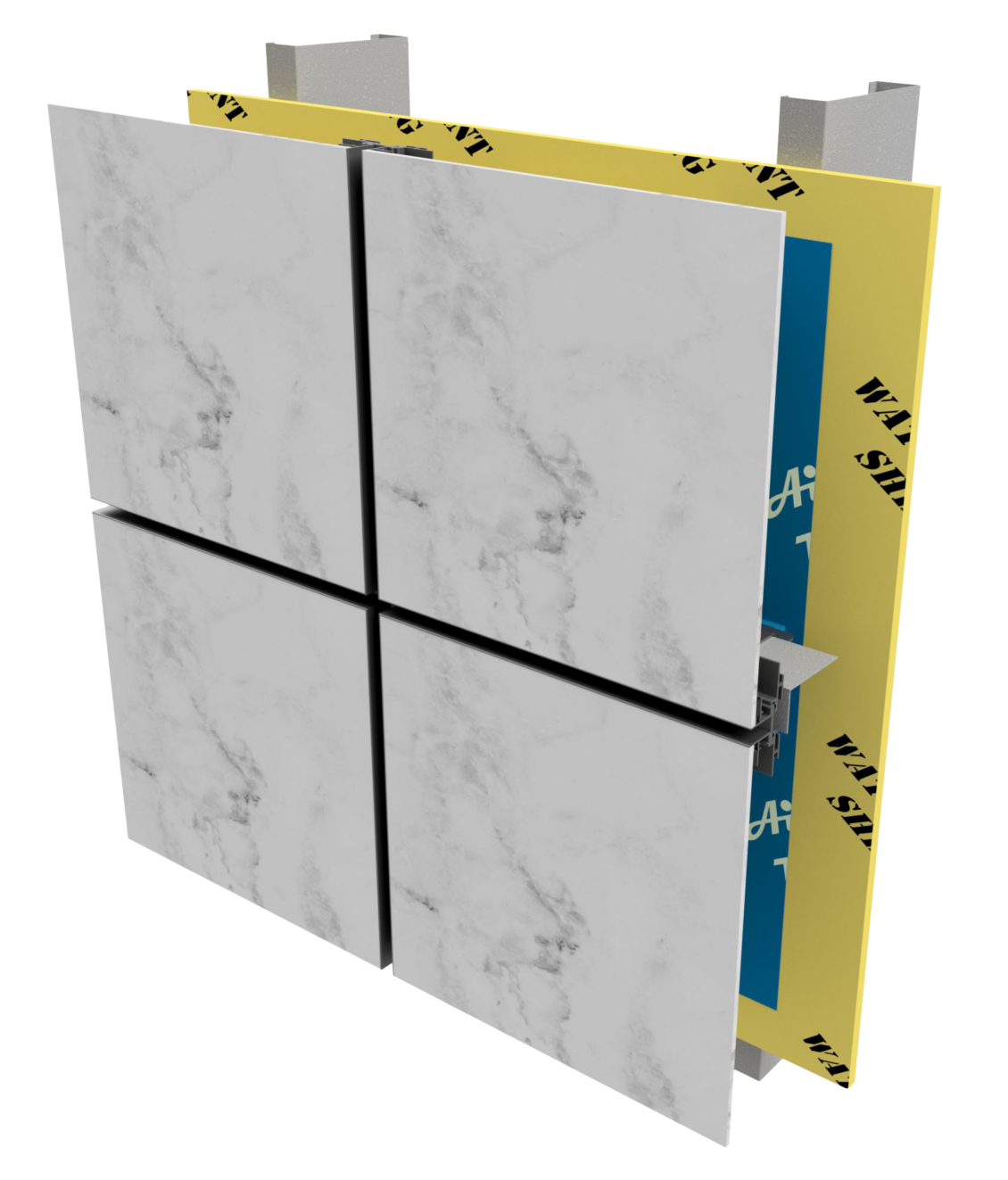

Custom made Laminam sintered ceramic tile faced, modular wall and soffit panel system. System uses a rear ventilated dry joint, rain screen construction.

Made from a blend of fine-grain clays and other minerals to produce a very dense body, which makes ceramic highly resistant to moisture, staining and wear. It will withstand years of heavy weathering in exterior façade applications while maintaining its color and beauty. A rain screen system for non-combustible construction.

Available plank sizes:

• Laminam 3+ (3.5mm) is available in 1000mm x 3000mm slab size.
• Laminam 5 (5.6mm) is available in 1000mm x 3000mm and 1620mm x 3240mm.

Exposed STX panel extrusions black anodized as standard or painted with a PPG/ Duranar color or anodized to compliment ceramic tile.

Prefabricated mitered tile corners are available.

•  Rain screen system (DBVR) (PER)
• Excellent anti-graffiti properties
• Thin, light-weight slabs
• Install on multiple substrates
• Suitable for high rise construction
• Resistant to extreme frost and UV rays
• Scratch, dent, and abrasion resistant
• Wide range of high quality finishes and texture options available
• Non-combustible
• Quick installation
• Building code compliant

• Large format sintered ceramic material
• 130+ colors to choose from
• SB10, ASHRAE 90.1 compliance through integration of a thermally insulated sub-girt ISO clip system
• Bonded fiberglass mesh backing comes standard with STX system to keep material in place in the unlikely event of breakage

• Through approved façade and cladding contractors throughout North America
• Fabricated by Northern Facades Ltd. In a state-ofthe-art production facility in Ontario, Canada
• Project estimating, engineering, design assistance and 3 D laser scanning service available
• Optimum price point cassette panel dimension 1000mm x 3000mm
• Average material lead time eight weeks

AAMA 501.1 – Standard Test Method for Water Penetration of Windows, Curtain Wall and Doors Using Dynamic Pressure

AAMA 508-09 – Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding System

AAMA 509-14 – Voluntary Test and Classification Method for Drained and Back Ventilated Rain Screen Wall Cladding Systems

ASTM E283-04(2012) – Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Difference Across the Specimen

ASTM E330/E330M-14 – Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference

ASTM E331-00(2016) – Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference

ULC-S135-04 – Standard Test Method for the Determination of Combustibility Parameters of Building Materials Using an Oxygen Consumption Calorimeter (Cone Calorimeter)
