ISO Clip: Thermal Isolation Clip
Accumet Panel System
STX Ceramic
Axiom Aluminum Plate Wall System
6450HP
5250 OptiVü
ISO Clips

ISO CLIP

Thermal Isolation Clip

Increasingly stringent building codes coupled with rising energy costs has opened the market for new methods of effectively insulating buildings. The ISO Clip has been designed to meet these needs in an economical and user-friendly design. The exterior appearance of the building façade is important, but the effectiveness of the wall assembly is what will provide occupancy comfort and energy efficiency. Overuse of carbon heavy energy sources to
maintain indoor temperatures are not only expensive but environmentally detrimental.

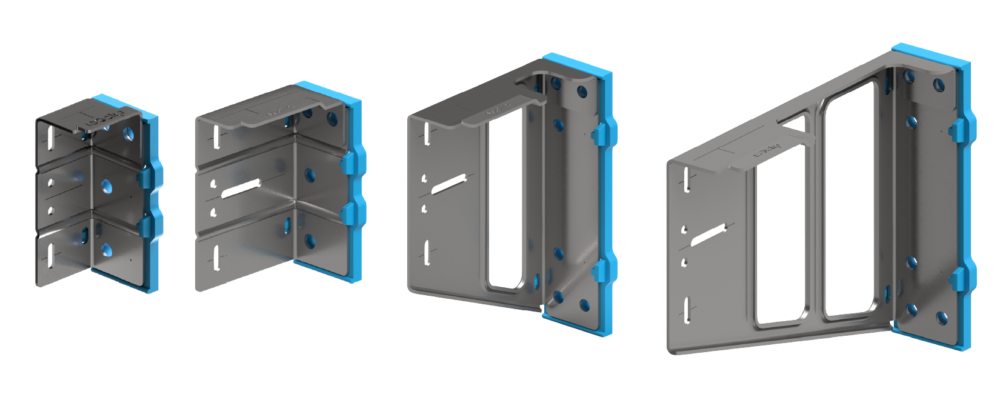

The ISO Clip is a thermal barrier separating the interior of the building from the exterior framing components. Unique design features reduce the thermal transfer from the interior to the exterior. Thermal performance of the clip has been verified by the industry leaders, Morrison Hershfield.

The ISO Clip is engineered to perform on all substrates, including concrete, concrete block, steel studs or wood. Each ISO Clip can accommodate a variety of insulation thicknesses or wall depths, eliminating the need for shims. The ISO Clip installed in the same orientation is suited to accept either vertical or horizontal sub-girts. Versatility and ease of use combined with the effective use of insulation makes the ISO Clip the product to specify.

ISO Clip Website

ISO Clip 2.0″ Technical Data Sheet

ISO Clip 3.25″ Technical Data Sheet

ISO Clip 4.75″ Technical Data Sheet

Bergeron Northern Facades Project

ACCUMET

Preformed Composite Wall Panels

Materials

ACCUMET panel system is comprised of flat 4-mm aluminum composite plank that is available in a variety of colours and finishes – even stainless steel, copper, granite or marble.

System

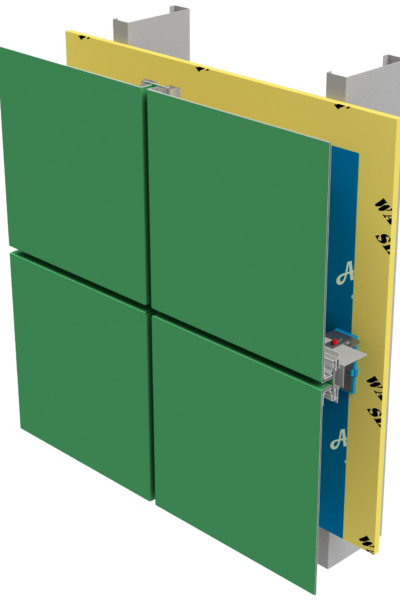

ACCUMET is fully engineered for virtually any application. Accumet is a rear-ventilated rain-screen system and can be provided with gaskets for AMMA compliance. Whether making a corporate ‘branding’ statement or simply re-cladding your existing facility, the Accumet 2000 system may be for you! Owners and designers also use this system on the interior as a feature wall or protective wall covering.

Features

  • Bonded pre-finished aluminum (or other exotic metals) to a thermoplastic or FR core
  • Fully Engineered Rainscreen, Tested and Installed in hundreds of Exterior and Interior applications
  • Designed for thermal expansion and contraction without binding, rattling or misalignment
  • Limitless design flexibility through form and colour
  • Superior in flatness – eliminating dimpling, buckling and oil canning
  • Vast color & finish options
  • SB10, ASHRAE 90.1 Compliant with inclusion of ISO Clip thermal clip
  • Certified Testing

ACCUMET Technical Data Sheet

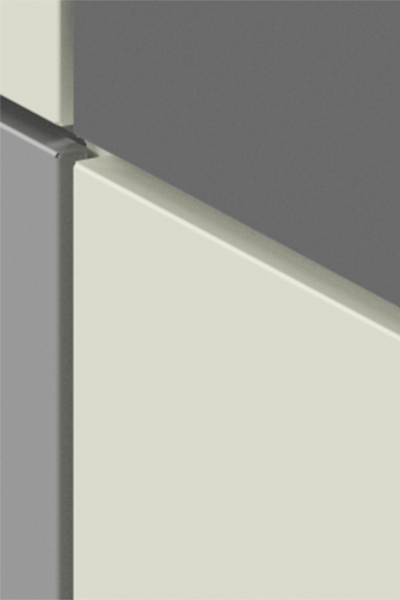

Panel Close-up

STX CERAMIC

Rainscreen Ceramic

Materials

Laminam Ceramic supplied by Stone Tile International and made from a blend of fine-grain clays and other minerals to produce a very dense body, which makes it highly resistant to moisture, staining and wear. It will withstand years of heavy weathering in exterior façade applications while maintaining its color and beauty.

System

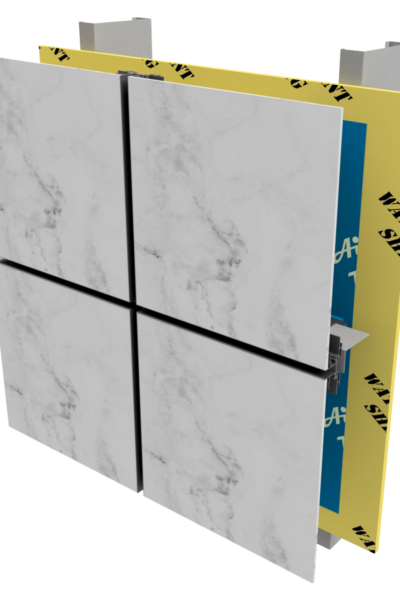

Ceramic panel rain-screen façade system available in the full range of Laminam Ceramic finishes and textures.

Features

  • 130+ colors to choose from
  • SB10, ASHRAE 90.1 compliance through integration of a thermally insulated sub-girt ISO clip system
  • Bonded fiberglass mesh backing comes standard with STX system
    to keeps material in place in the unlikely event of breakage
  • Rain screen system (DBVR) (PER)
  • Excellent anti-graffiti properties
  • Thin, light-weight slabs
  • Install on multiple substrates
  • Suitable for high rise construction
  • Resistant to extreme frost and UV rays
  • Scratch, dent, and abrasian resistant
  • Wide range of high quality finishes and texture options available
  • Non-combustible
  • Quick installation
  • Building code compliant

STX Technical Data Sheet

Laminam Website

Laminam Product Book

Axiom Panel System

AXIOM

Aluminum Plate Wall System

Materials

AXIOM panels are fabricated from tension leveled, architectural grade aluminum plate, complete with shop installed stiffening ribs (if required). Panel corners are welded on 3mm panels to provide a seamless finish. On 2mm panel corners are non-welded providing a sharper return edge.

In aluminum, the 3mm lightweight panels are factory painted, in an controlled environment, after forming, which allows for limitless applications and the ultimate in design flexibility. 2mm prepainted panels are also available as well as other non-ferrous materials such as zinc and stainless steel.

System

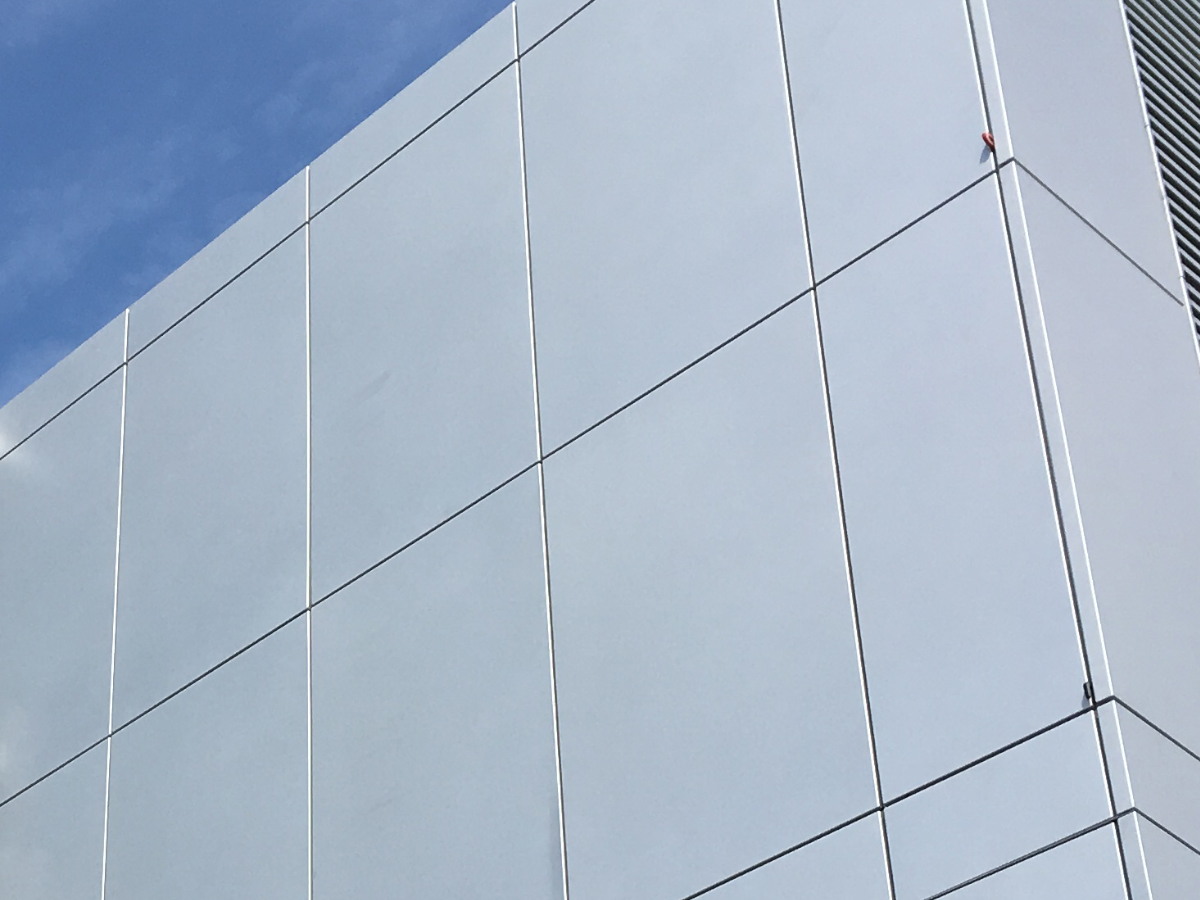

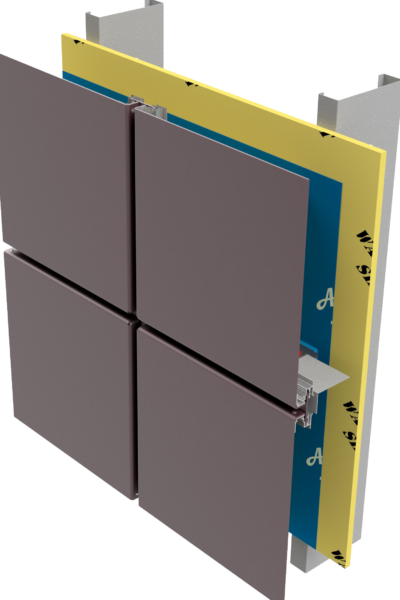

AXIOM is a solid metal plate wall system uniquely designed and tested as a pressure equalized rainscreen. The Axiom System meets all of the requirements of the latest edition of the National Building Code for non-combustible construction and is considered a true dry-joint “Rainscreen Principle” system. This system should be considered when codes prevent the use of composite panel.

Features

  • Non-combustible
  • Dry joint rain screen -(DBVR) (PER)
  • Designed for thermal expansion and contraction
  • Limitless design flexibility including curves and corners
  • Available 2mm pre-finished or 3mm post-painted
  • SB10, ASHRAE 90.1 compliant with inclusion of ISO Clip
  • Variety of colours and finishes

AXIOM Technical Data Sheet

6450 UCW Rendering

6450HP

Fully Unitized Curtain Wall

Performance Value

6450HP is an innovative and versatile unitized curtain wall system designed to curb a building’s energy appetite and protect against the effects of today’s harsh climate. 6450HP is designed to be assembled and glazed in a controlled environment for increased quality assurance of critical seals and components. Fully engineered and completed unitized frames are shipped directly to the jobsite permitting rapid installation. 6450HP’s adaptability to fulfill most Architectural needs lends itself to being one of the most versatile and leading curtain wall systems in today’s market. 6450HP can easily be customized to seamlessly interface with market leading window and door systems.

Performance & Design Flexibility

  • Versatile framing design
  • 2 1/2” (63.5mm) sightline, with multiple system depths
  • 4-side captured (horizontal and/or vertical)
  • 2-side captured glazing (horizontal and/or vertical)
  • 4-side structural silicone glazing
  • Polyamide thermal breaks for captured systems
  • Increased condensation resistance
  • Thermal barrier minimizes heat transfer, providing improved occupant comfort * (fiberglass optional)
  • Standard perimeter silicone heal beads in all captured vision applications. Does not rely on compression gasket to maintain air and water tightness
  • Accommodates 20mm (13/16”) differential floor to floor movement
  • 90° inside and outside corners
  • Silicone setting blocks
  • Structural setting block chairs
  • Pre-installed silicone exterior weatherseal gaskets
  • 3-way adjustable curtain wall anchors
  • 300 series stainless steel assembly fasteners
  • Dual finish capability (inside/outside finish)
OptiVu Rendering

5250 OPTIVÜ

Operable Vent

Features

  • Curtain wall accessory
  • Stand-alone vent
  • Zero sightline and colour matched
  • NAFS and CSA A440 tested

OptiVu FW100 Brochure

OptiVu HPGV Brochure
