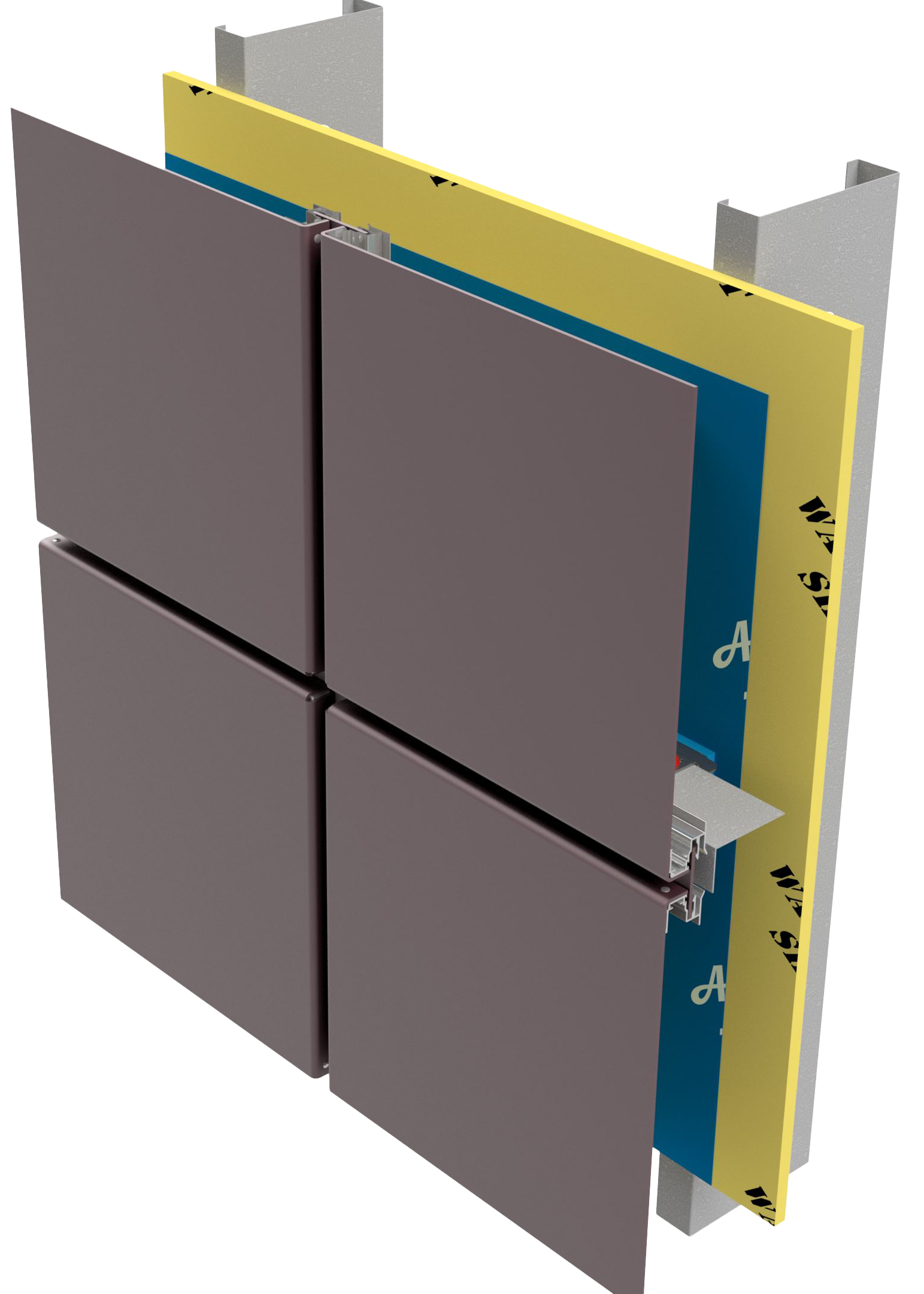

Axiom is a solid metal plate rain screen panel system. The Axiom system meets all of the requirements of the latest edition of the National Building Code for non-combustible construction and is considered a true dry-joint system. Where code requires the use of non combustible construction and cladding, Axiom is a clear choice for leading architects and designers.

AXIOM panels are fabricated from tension-leveled, architectural grade aluminum plate, pre-finished or post painted, complete with shop installed stiffening ribs (if required). Panels are typically 1/8” (3mm) plate pressed formed with miter jointed corners or welded to provide a seamless finish, then post painted. 2mm prepainted panel corners are mitred and provide a sharper return edge.

Post painting allows for limitless colour applications and ultimate design flexibility including perforated plate. Pre- finished material typically 2mm opens up a world of possible custom finishes, patterns and printing subject to minimum order limitations. Axiom is also available in zinc and stainless steel.

The AXIOM series is available in standard panel widths up to 60” and length up to a maximum of 144”. The standard and most cost effective panel module is 20-25 sq.ft in area. Larger size panels can be accommodated, with maximum dimensions of 72” wide by 168” in length, please consult with your representative for availability and pricing. The system has a depth of 2” nominal with horizontal and vertical joints both nominally 0.6” for 3mm and 0.7” for 2mm.

• Non-combustible
• Dry joint rain screen – (DBVR) (PER)
• Designed for thermal expansion and contraction
• Limitless design flexibility including curves and corners
• Available 2mm pre-finished or 3mm post-painted
• SB10, ASHRAE 90.1 compliant with inclusion of ISO Clip
• Variety of colours and finishes

• Fabricated by Northern Facades in Ontario, Canada
• Project estimating, engineering, design assistance and 3D laser scanning service available
• Project-specific pricing
• Average material lead time 5-6 weeks

ASTM E84-18b – Standard Test Method for Surface Burning Characteristics of Building Materials

AAMA 501.1 – Standard Test Method for Water Penetration of Windows, Curtain Wall and Doors Using Dynamic Pressure

AAMA 508-09 – Voluntary Test Method and Specification for Pressure Equalized Rain Screen Wall Cladding System

AAMA 509-14 – Voluntary Test and Classification Method for Drained and Back Ventilated Rain Screen Wall Cladding Systems

ASTM E283-04(2012) – Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Difference Across the Specimen

ASTM E330/E330M-14 – Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference

ASTM E331-00(2016) – Standard Test Method for Water Penetration of Exterior Windows, Skylights, Doors, and Curtain Walls by Uniform Static Air Pressure Difference
