Single-skin folded metal panels with dry joints and hidden fasteners. Accuform delivers a clean, flat look with engineered pressure moderation and efficient installation—ideal for projects seeking premium aesthetics with streamlined delivery.
Accuform is a rain-screen system with concealed fastening. Compliant to all North American Building Codes for non-combustible construction. While being a cost-effective panel system, the speed and simplicity of hook over rail installation brings further savings in productivity. If code or specification requires non-combustible construction Accuform is a clear choice.

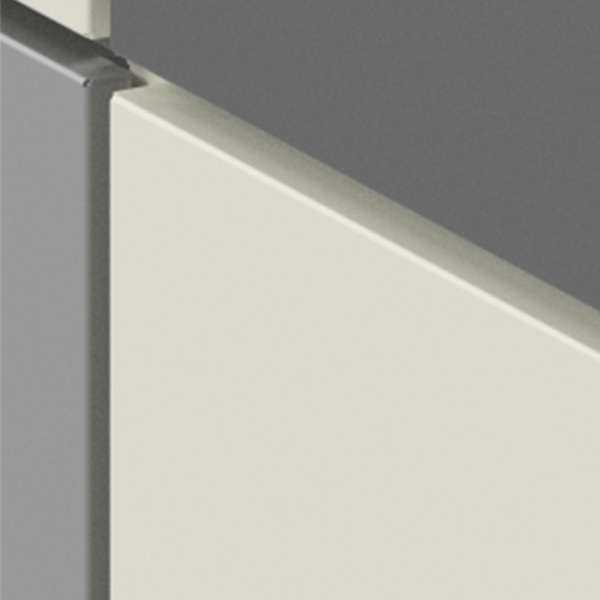

This cassette style plate panel system has all interlocking edges bent from one peice of metal. Our custom trim extrusions allow the panels to be cut on site to suit site conditions. With trims colour matched, designed to address cut panel and termination details.
Accuform panels are designed and engineered to be economical and easy to install. They are fully formed on an automated line allowing us to provide the panels in a minimal lead time, at a competitive price, while maintaining extreme precision and quality.
The panels are formed from tension leveled architectural grade aluminum plate offered in a wide variety of 2mm pre-finished or post painted colors.
Accuform is a metal plate system, meaning it is non-combustible and fully recyclable upon the end of its life. The panel system depth ranges from 2” – 4” as part of our standard offering.
Panel corners are mechanically formed butt-jointed when using prefinished material.

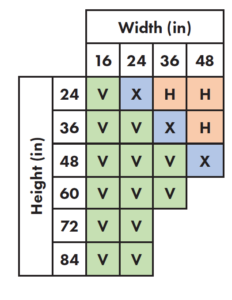

X – Panel size works in both directions
V – Panel size works in vertical applications
H – Panel size works in horizontal applications
- Non-combustible dry joint rain screen system (DBVR) (PER).
- Economical.
- Simple quick installation.
- Accommodates thermal expansion and contraction.
- Panel Grid flexibility.
- Standard panel sizes optimized for economical pricing and quick delivery.
- Rapidly manufactured.
- Tested.
- Sustainable, can be reused, refinished or recycled.
- Pricing available through Northern Facades and authorized distributors
- Fabricated by Northern Facades Ltd. In a state-of-the-art production facility
- Project estimating, engineering, design assistance and 3D laser scanning service available
- Project-specific pricing
- Average material lead time for stock colours is 6-7 weeks*
- Average material lead time for custom colours is 8-13 weeks*
* Lead times vary due to supply
chain constraints. Please check with
Northern Facades consultant for
current lead times
ASTM E84-18b – Standard Test Method for Surface Burning Characteristics of Building Materials
ASTM E330/E330M-14 – Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference
ASTM E331-00(2016) –Standard Test Method for Determining Rate of Air Leakage Through Exterior windows, Curtain Walls, and Doors Under Specified Pressure Difference Across the Specimen
ASTM E1233/1233M-14 Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights, and Curtain Walls by Cyclic Air Pressure Differential
AAMA 509-14 – Voluntary Test and Classification Method for Drained and Back Ventilated Rain Screen Wall Cladding Systems
ASTM E283-04(2012) – Standard Test Method for Determining Rate of Air Leakage Through Exterior windows, Curtain Walls, and Doors Under Specified Pressure Difference Across the Specimen
